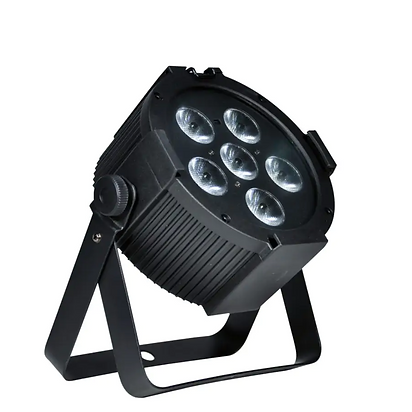

Proton 6 Quad USB
Professional LED floodlight with RGBA mix and USB port
Proton 6 QUAD USB is a lightweight and compact professional luminaire that has 6 8W RGBA LEDs. A member of the successful return of the Proton series, the unit provides smooth RGBA mixing without multicolor shadows thanks to its LED technology, adding the myriad of colors, saturation and intensity that Ambar adds to the mix. Due to its power and its 20º beam angle, it is ideal both for use on stage or in the most demanding installations. Among its most outstanding features is the incorporation of a USB port that allows, through the use of the NEO USB Stick, to control the unit wirelessly or through the AMPRO® NEO Wi app, available for iOS® & Android®.
Source & Optics
Light source: 6 x 8W RGBA LEDs Average life: 50,000 hours Beam angle: 16º / Field angle 35º
photometric data
Luminous flux: 1047 Lux @ 3m (10 ft)
Effects and functions
Controllable via the NEO Wi app - iOS® & Android® incorporating the NEO USB Stick Four-color LED technology: Smooth RGBA mix without multicolor shadows Ideal for setting due to the incorporation of amber 15 Color Macros and rainbow effect Dimmer: 0-100% general & for all colors Strobe effect: 1-30 Hz Flicker free (Ideal for broadcasting) 4 built-in programs Controllable via IR (not included) Built-in microphone Gel Frame included
Control
DMX channels: 4/9 Operation modes: DMX, Master/Slave, Automatic, static colors & sound activated USB port for Wi-Fi control (via NEO USB Stick) Software update via DMX
Physical
IP20 certification 4-digit LED display DMX connectors: 2 XLR connectors (XLR-3 input and output) USB port Power and thru connectors Dimensions: 224x211x114 mm. Weight: 2 kg.
