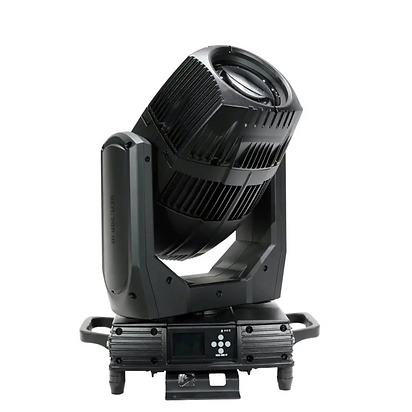

Neo 380 IP
Outdoor beam moving head with Philips MSD Platinum Flex 300S lamp
NEO 380 IP is the new NEO beam moving head designed to withstand the most extreme weather conditions, without losing performance or versatility. Its optimized design, proof of everything, allows it to reach a level of performance and efficiency rarely seen in the market, guaranteeing exceptional performance for the most demanding applications in the industry. With NEO 380 IP it's time to shine, everywhere.
Source & Optics
Light source: Philips MSD Platinum Flex 300S lamp. Beam angle: 2 degrees. Focus: Variable from 5m to infinity. Lifespan: 6,000 hours.
Photometric information
Luminous flux: 12,000 lumens Color temperature: 7200K
Effects and Functions
Color wheel: 14 gobos + open, split color. Static gobo wheel: 12 gobos + open, variable speed. Prism: 8-facet prism and 16-facet prism, with independent effect control, combinable with each other. Dimmer: 0-100% of 16 bit Strobe: High speed, Pulse, Random 1-25Hz, Pulse with adjustable speed, synchronous and asynchronous.
Control
DMX channels: 13/15/17 Protocol: DMX-512 RDM Display: LCD 16-bit control
Motion
Pan: 540° Tilt: 270°
Electric
Input voltage range: 100-240V 50/60Hz Maximum power consumption: 580W
physical characteristics
DMX connectors: 3 XLR connectors (XLR-3 input & output).
Feeding
AC power: Waterproof cable 4.92 ft. (1.5 m) IP Range: IP66 LCD Display Dimensions: 630x400x280 mm. Weight: 24 kg.
temperature ranges
Operation: -15°C - +45°C Initialization: -25°C - +45°C Storage: -40°C - +60°C Cooling: heatsink and fans intelligently monitored from the system.
